JDY PERFORMANCE - Billet CNC Intake Manifold For VW MK7 & MK7.5 Golf GTI & R
Designed for high-boost applications and big-turbo builds, the JDY Billet Intake Manifold is the ultimate upgrade for enthusiasts who demand maximum airflow, structural integrity, and a premium engine bay aesthetic.
Features:
-
Advanced airflow design
- Venturi-style tapered runners increase intake air velocity
- Bell-mouth velocity stack entries improve smooth, laminar airflow
- CNC machining paths are aligned with airflow to reduce friction and turbulence
-
Designed for high-performance applications
- One-piece billet 6061-T6 construction for maximum strength and durability
- 8mm thermal gasket helps reduce heat soak and lower intake air temperatures
- Larger plenum volume improves high-RPM airflow and power delivery
- OEM runner flaps removed to maximise airflow and reduce restriction
-
Tuner-friendly features
- 4x pre-tapped 1/8 NPT ports for water-methanol injection
- 3x vacuum reference ports for boost gauges, BOVs, and wastegate controllers
- Redesigned lower structure provides full clearance for upgraded fuel rails
-
Hybrid fueling & MPI support (EA888 Gen 3/4)
- Restores MPI (port injection) capability for high-horsepower builds

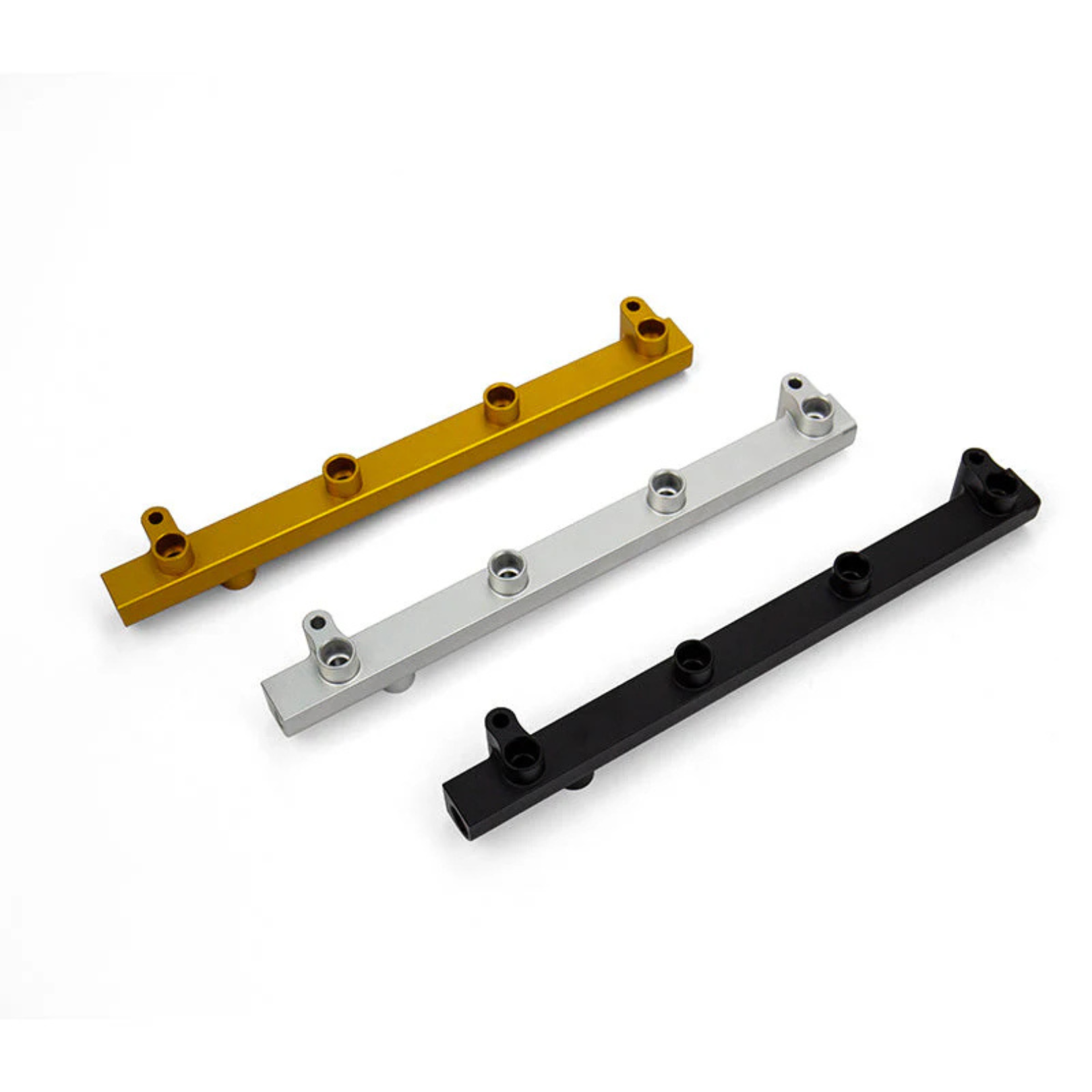

- Includes high-flow AN6 billet fuel rail
- Supports both custom circulated fuel setups with AN6 ORB fittings and OEM-style plug-and-play fuel line integration via custom barb adapter
- Precision injector positioning ensures proper spray angle and leak-free sealing
-
Styling & fitment
- Aggressive diamond-cut exterior styling
- Retains factory PCV system and throttle body positioning for bolt-on installation
- Includes custom coolant hoses and clamps for improved clearance and cleaner fitment
Included:
- Billet CNC intake manifold
- Billet CNC fuel rail
- Installation hardware
Suits:
- VW MK7 Golf GTI
- VW MK7 Golf R
- VW MK7.5 Golf GTI
- VW MK7.5 Golf R
